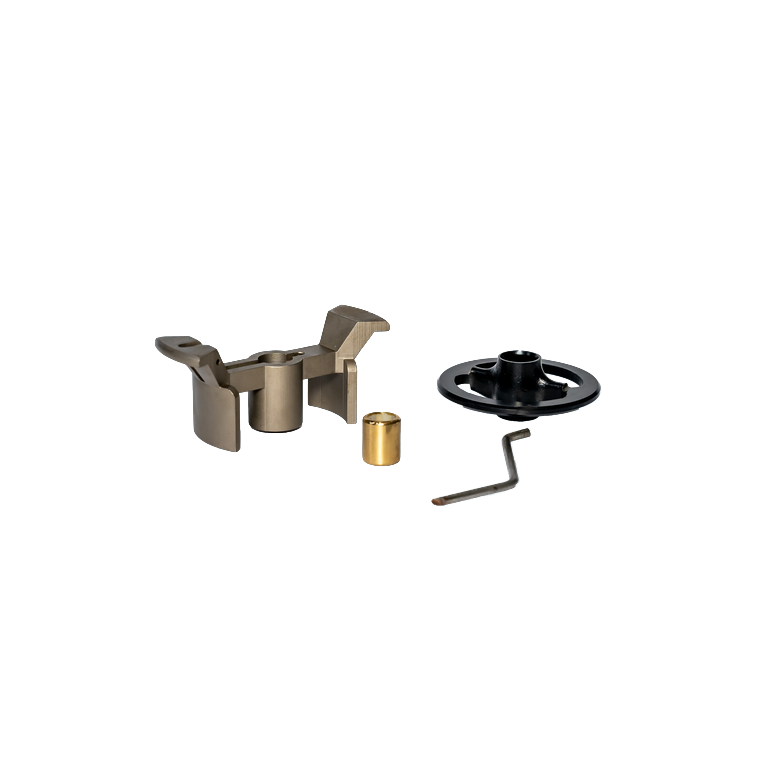

FP Valve Guide

Julipetro FP Valve Guide is a high‑precision guiding component specially designed for the fluid end of high‑pressure fracturing pumps, widely used in oilfield fracturing, acidizing, well servicing, and high‑pressure fluid transportation systems. As a key part that ensures stable movement and accurate centering of the valve assembly, it effectively eliminates radial swing, reduces eccentric wear, protects sealing components, and extends the service life of the entire valve system. Manufactured in strict compliance with API 674 standards and made from premium 17‑4PH stainless steel with precision machining and specialized heat treatment, this valve guide integrates precision guiding, excellent corrosion resistance, outstanding wear resistance, standardized compatibility, and extended service life to meet the rigorous demands of harsh fracturing environments.

The core advantage of Julipetro FP Valve Guide is its ultra‑high precision guiding performance. The inner bore is processed with precision grinding and fine machining to achieve an accuracy of ±0.01mm, ensuring that the valve stem moves along a strict central axis during high‑frequency reciprocating motion. This precise centering eliminates radial deflection, vibration, and eccentric friction, which are major causes of premature seal failure and abnormal wear. By maintaining perfect concentricity between the valve body and valve seat, it ensures full contact of the sealing surface, maximizes sealing efficiency, and significantly improves the stability and volumetric efficiency of the entire fracturing pump system.

Constructed from high‑grade 17‑4PH precipitation‑hardening stainless steel, Julipetro FP Valve Guide delivers exceptional corrosion resistance and mechanical stability. This specialized stainless steel material provides excellent resistance to acid, alkali, salt, and other corrosive media commonly found in fracturing fluids, effectively preventing rust, pitting, and material degradation in harsh downhole environments. Through solution and aging heat treatment, the material achieves optimal strength and toughness, ensuring stable performance and structural integrity under long‑term high‑pressure impact and alternating loads.

To further enhance durability, the inner bore of the valve guide adopts a specialized surface hardening treatment, resulting in a surface hardness of HRC 40–45 and surface roughness controlled at Ra 0.8. This wear‑resistant design provides three times the wear resistance of conventional guides, effectively reducing friction loss during high‑frequency reciprocation and resisting abrasion caused by sand‑laden fracturing fluids. The hardened surface maintains dimensional stability and smooth operation, while the optimized structural design reduces stress concentration and fluid scouring, making the whole component more durable in heavy‑duty working conditions.

Fully compliant with API 674 international standards, Julipetro FP Valve Guide features a standardized design with unified dimensions, connection interfaces, and performance specifications. This standardization ensures high interchangeability and broad compatibility with most major fracturing pump models worldwide, supporting direct replacement without modification. The standardized design simplifies inventory management, accelerates on‑site maintenance, and ensures reliable performance across various pump configurations, making it suitable for OEM installation, aftermarket replacement, and equipment upgrading.

Through comprehensive material optimization, precision machining, and structural design, Julipetro FP Valve Guide achieves a 50% longer service life compared with conventional guides. The extended service life reduces replacement frequency, minimizes unplanned downtime, and lowers maintenance costs, providing long‑term reliability for continuous high‑intensity fracturing operations. Its exceptional performance makes it an indispensable key component in fracturing pump fluid end systems.

Julipetro FP Valve Guide is widely used in fracturing pump valve guiding, fluid end maintenance, new pump assembly, and as a universal part in drilling equipment packages. It is particularly suitable for high‑frequency reciprocating environments, corrosive media conditions, and high‑pressure operating scenarios where precision and durability are critical.

Backed by a 12‑month warranty, Julipetro provides comprehensive support including professional size selection guidance, 7–10‑day lead times for standard orders, and responsive after‑sales service to resolve any operational issues. Each valve guide undergoes strict dimensional inspection, hardness testing, and surface quality verification before delivery, ensuring full compliance with API 674 standards and reliable field performance.

In summary, Julipetro FP Valve Guide integrates precision guiding, 17‑4PH stainless steel construction, inner bore surface hardening, API 674 standardization, and 50% extended service life to provide a reliable, long‑lasting guiding solution for fracturing pump valve systems. With its premium material, ultra‑precision machining, and optimized design, it enhances pump efficiency, reduces downtime, lowers maintenance costs, and ensures stable, safe operation in the most demanding oilfield fracturing and stimulation applications.

1. Precision Guiding: Inner bore accuracy ±0.01mm for smooth valve operation
2. Stainless Steel: 17-4PH stainless steel with excellent corrosion resistance
3. Wear-resistant Design: Inner bore surface hardening, 3x wear resistance
4. Standardized Design: API compliant, high versatility
5. Extended Life: Optimized design reduces wear, 50% longer service life



Material: Stainless Steel 17-4PH
Inner Bore Accuracy: ±0.01mm
Surface Hardness: HRC 40-45
Standard: API 674
Surface Roughness: Ra 0.8
Heat Treatment: Solution + Aging

1. Fracturing Pump Valve Guiding: Ensures smooth valve reciprocating motion
2. Fluid End Maintenance: Wear part replacement
3. New Pump Assembly: OEM installation
4. Drilling Equipment Package: Mud pump universal parts

Warranty: 12 months
Technical Support: Size selection guidance
Lead Time: 7-10 days
After-sales Service: Usage problem solving
