Liner Seal

Julipetro Liner Clamp is a heavy‑duty, high‑strength fixing component specially designed for securing cylinder liners in mud pump fluid ends used across oil and gas drilling, well cementing, workover, and high‑pressure fluid transportation systems. As a critical part that locks the liner in place, it withstands strong vibration, alternating pressure loads, and continuous impact during pump operation, preventing axial movement, radial displacement, or seal failure of the cylinder liner. Manufactured in strict compliance with API 7K standards and built with forged carbon steel, this liner clamp delivers exceptional strength, durability, quick installation, and corrosion resistance to meet the most demanding on‑site maintenance and long‑term operational needs.

The core advantage of Julipetro Liner Clamp is its heavy‑duty integral forged structure. Made from high‑performance forged carbon steel, the clamp is formed through a precision hot forging process that eliminates internal defects, enhances material density, and ensures uniform stress distribution. This construction delivers outstanding mechanical performance with a tensile strength of ≥600MPa, enabling the clamp to resist heavy loads, repeated impact, and fatigue failure without cracking, deformation, or breakage. Unlike traditional cast or welded clamps, the one‑piece forged design provides maximum structural rigidity and safety, making it highly reliable in harsh drilling environments with high sand content, strong vibration, and continuous operation.

Julipetro Liner Clamp features an optimized quick‑release design that significantly improves maintenance efficiency. Through structural simulation and ergonomic optimization, the clamp simplifies assembly and disassembly steps while maintaining firm locking performance. Field tests show that installation and removal time is reduced by up to 50% compared with conventional clamps, greatly shortening downtime during liner replacement, fluid end overhaul, and routine maintenance. This time‑saving design directly boosts drilling continuity, reduces labor intensity, and lowers operational risk, making it ideal for emergency repairs and daily on‑site servicing.

Fully certified to API 7K international standards, Julipetro Liner Clamp adheres to strict specifications for dimensions, material properties, heat treatment, and performance. Every unit undergoes rigorous quality inspection to ensure consistent quality, reliable performance, and full interchangeability with original equipment and most major mud pump models. API certification guarantees compliance with global oilfield equipment requirements, enabling safe use in onshore drilling, offshore platforms, deep‑well projects, and high‑pressure operating conditions.

To support broad equipment compatibility, Julipetro Liner Clamp is engineered to fit cylinder liners ranging from 4 inches to 7 inches, covering most common mud pump sizes used worldwide. It is fully compatible with pumps from leading manufacturers, allowing users to standardize accessories and reduce inventory complexity. Whether for new pump assembly, aftermarket replacement, or equipment upgrade, the clamp provides a perfect fit and stable fixation, delivering versatility for drilling contractors, equipment maintenance teams, and pump manufacturers.

Built to withstand harsh outdoor and corrosive drilling environments, Julipetro Liner Clamp uses hot‑dip galvanizing for surface treatment. This professional anti‑corrosion coating forms a thick, dense protective layer that effectively resists rust, oxidation, and chemical erosion caused by moisture, drilling mud, and salt spray. The galvanized surface maintains integrity and appearance even under long‑term outdoor exposure, extending service life and ensuring stable performance in extreme climates and challenging field conditions.

Julipetro Liner Clamp is widely used in mud pump liner fixing, fluid end maintenance, daily drilling site upkeep, and complete equipment overhaul. Its primary role is to securely hold the liner in the correct position, ensuring stable matching with the piston assembly, maintaining proper sealing clearance, and preventing abnormal wear or leakage. By providing reliable liner fixation, the clamp helps sustain pump efficiency, reduce failure rates, and extend the service life of liners, seals, pistons, and other wearing parts.

Backed by a 12‑month warranty, Julipetro provides full customer support including professional installation guidance, 10–15‑day lead times for standard orders, and responsive after‑sales service to resolve operational issues. Each clamp undergoes tensile testing, dimensional inspection, and coating quality verification before delivery, ensuring full compliance with API 7K standards and reliable field performance.

In summary, Julipetro Mud Pump Liner Clamp combines heavy‑duty forging, quick‑release efficiency, API 7K certification, wide model compatibility, and heavy‑duty anti‑corrosion protection to deliver a safe, durable, and user‑friendly fixing solution. It improves maintenance efficiency, enhances operational safety, reduces downtime, and provides long‑lasting reliable performance for mud pump fluid ends. It is the preferred heavy‑duty liner clamp for global drilling operations, equipment maintenance teams, and oilfield service providers.

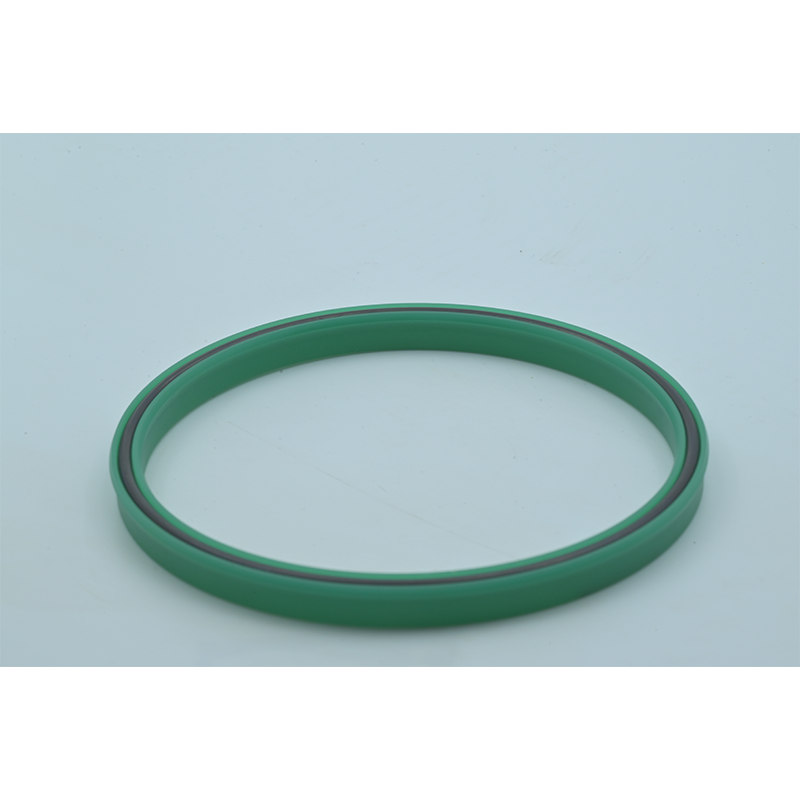

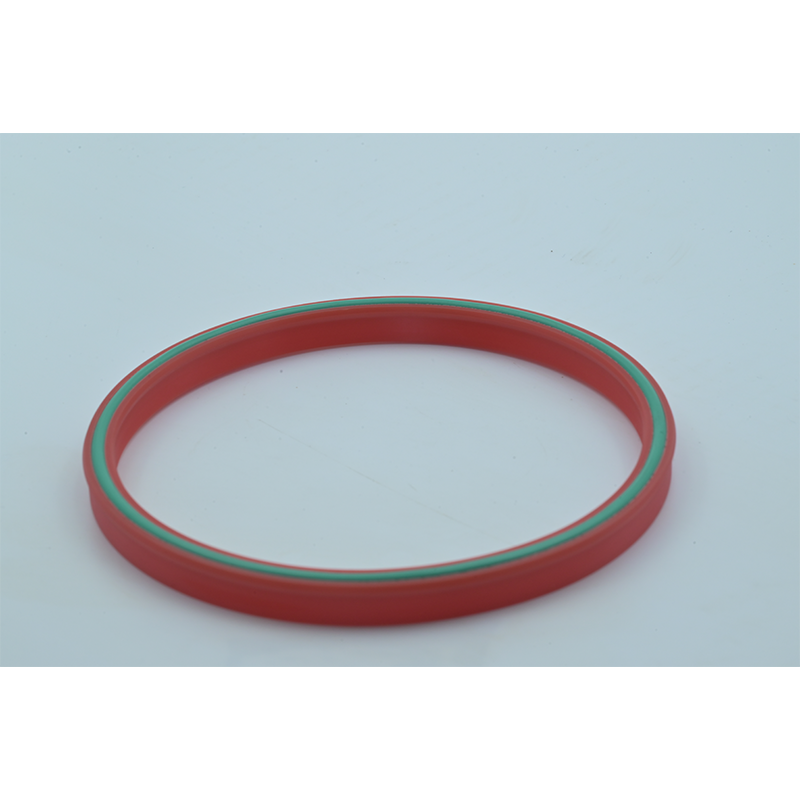

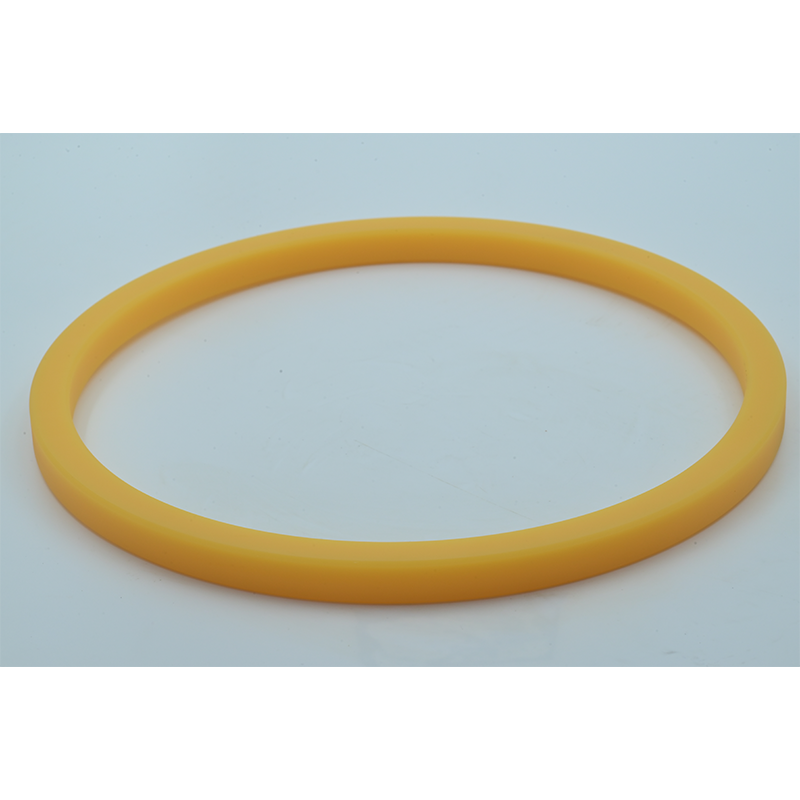

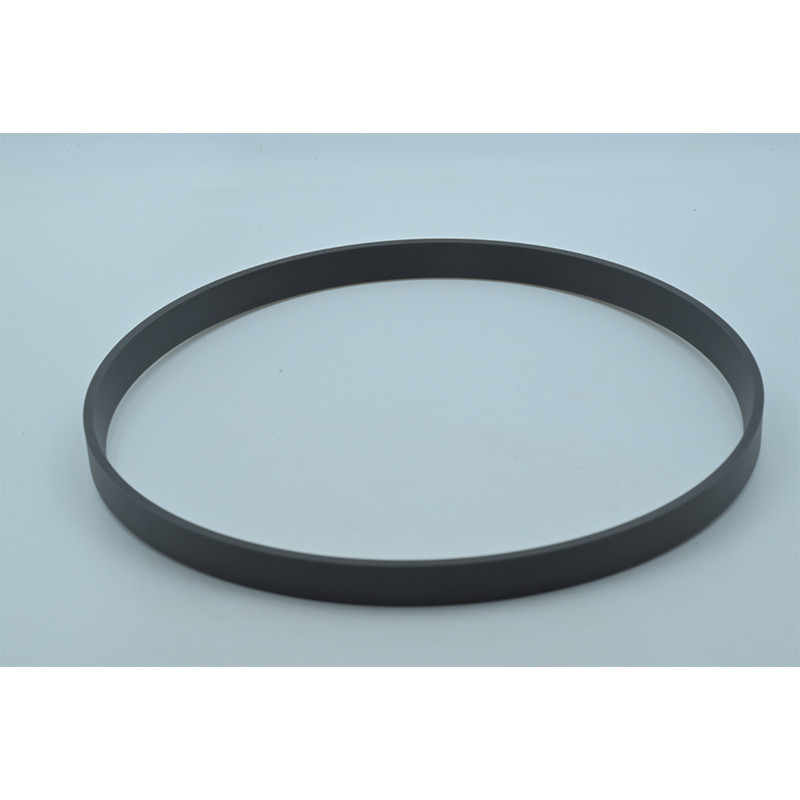

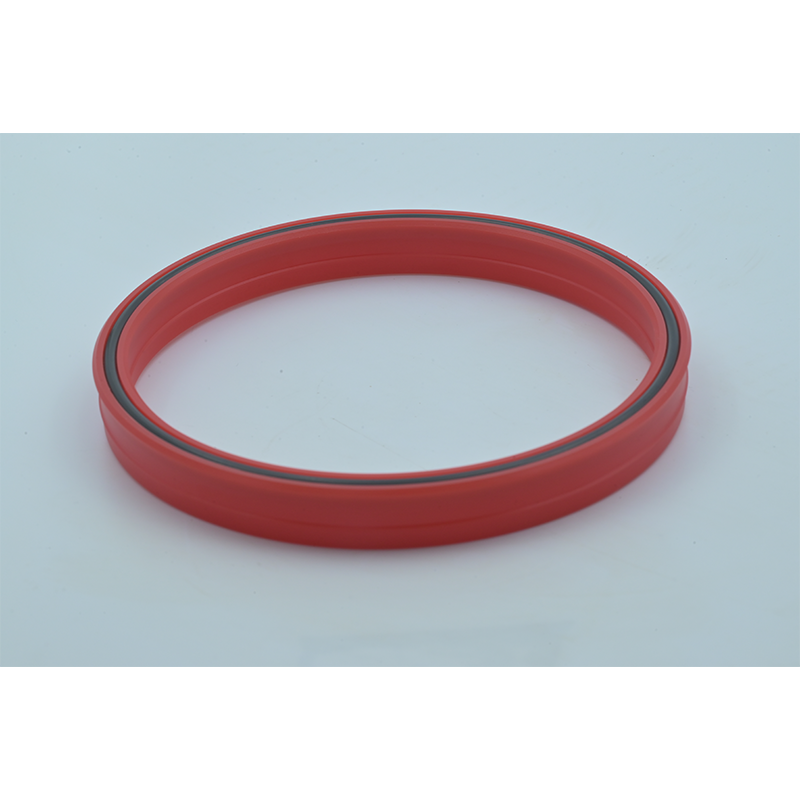

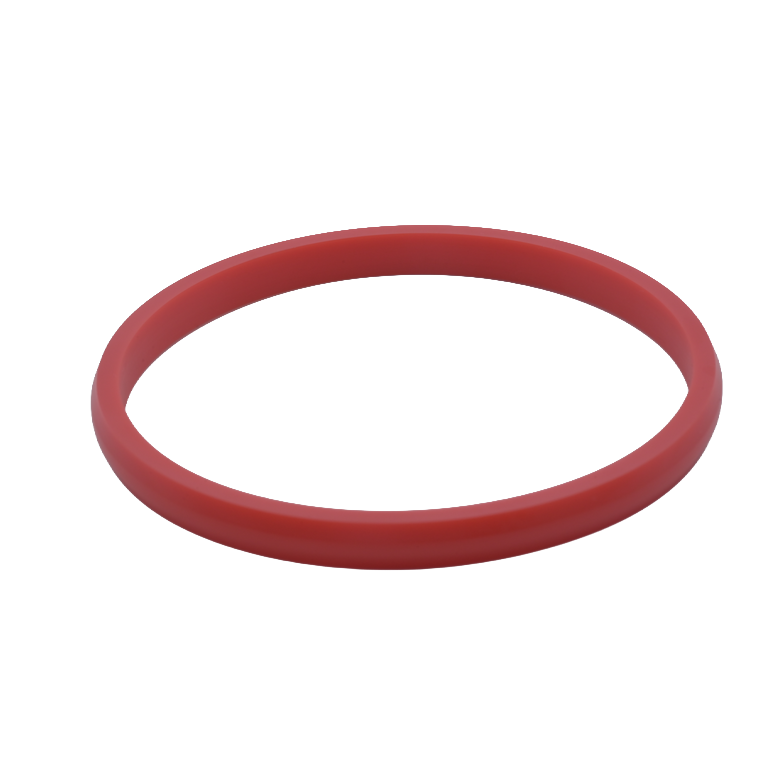

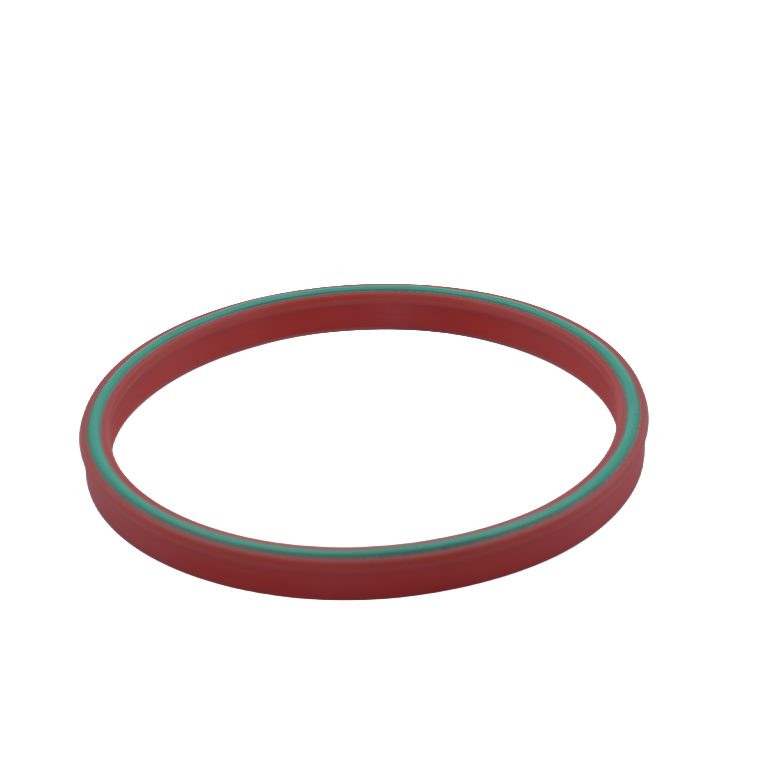

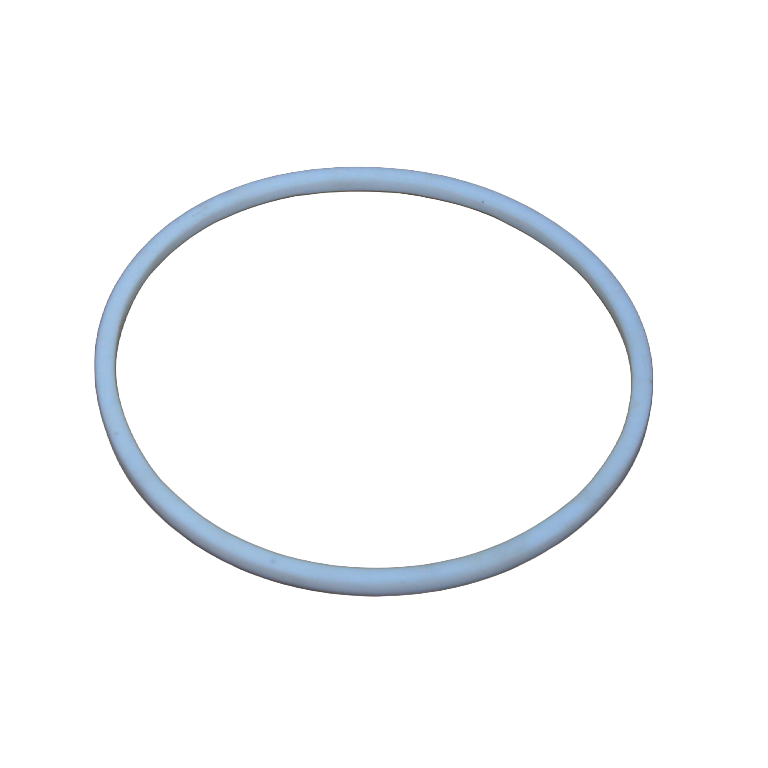

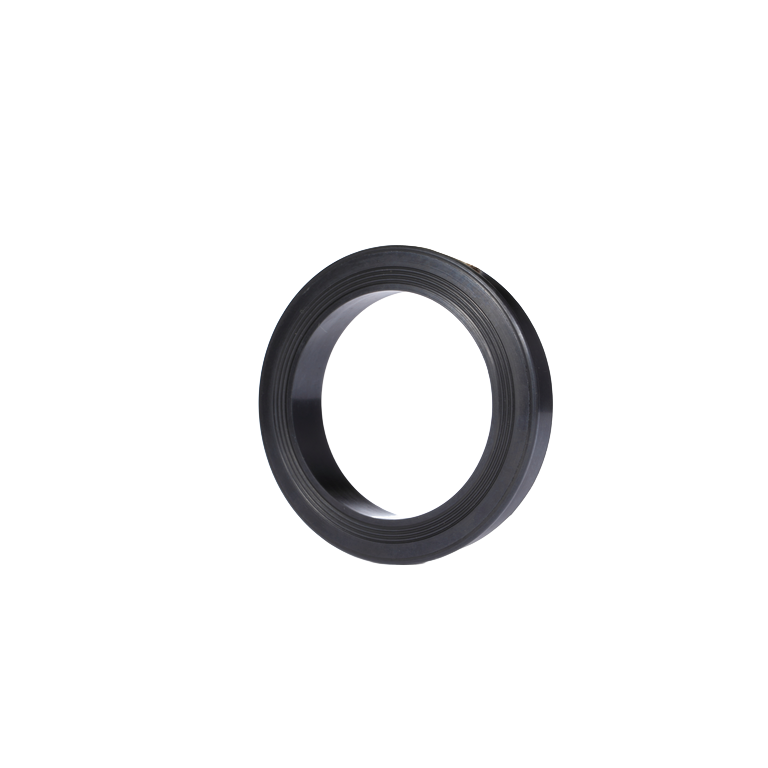

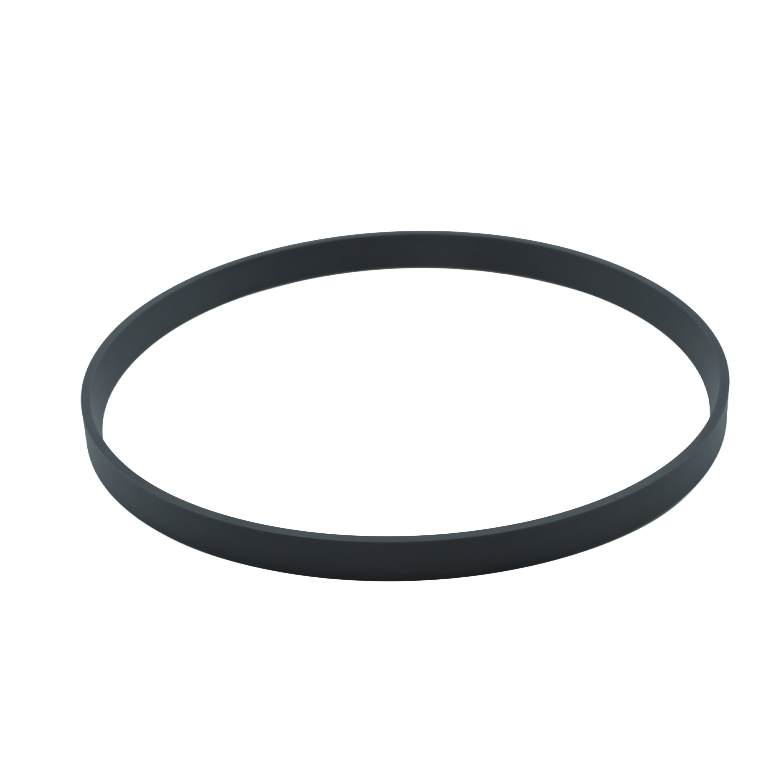

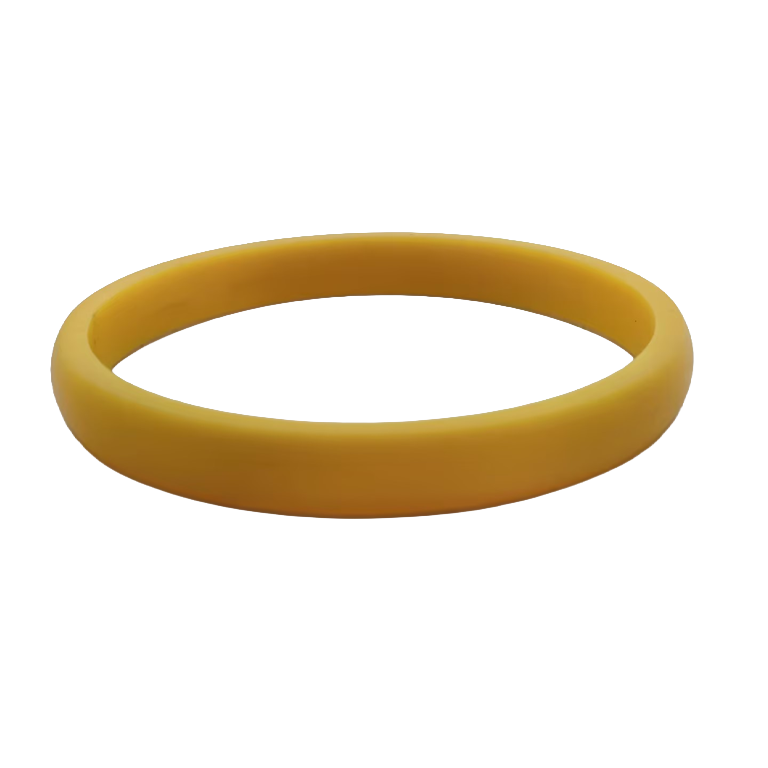

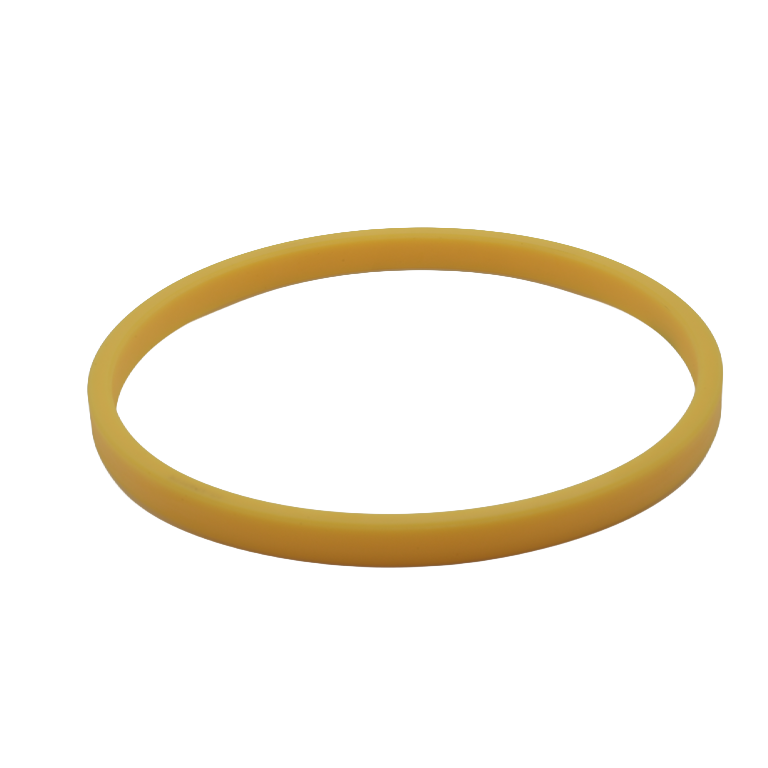

Julipetro Liner Seal is a professional high-pressure sealing component specially designed for mud pump fluid ends, serving as a critical barrier between the cylinder liner and the pump body. It provides reliable static and dynamic sealing to prevent mud leakage, ensure pressure stability, and protect the fluid end structure from erosion and corrosion. Made from high-quality nitrile rubber (NBR) and engineered with an optimized multi-lip structure, this liner seal combines excellent elasticity, oil resistance, heat resistance, and pressure resistance to meet the demanding sealing requirements of drilling operations. Fully compliant with API 7K standards, it offers high interchangeability, easy installation, and stable performance in harsh oilfield environments, making it an essential spare part for mud pump maintenance and fluid end overhaul.

The core advantage of Julipetro Liner Seal is its outstanding high-elastic sealing performance. Produced from premium nitrile rubber material with a hardness of Shore A 70–80, the seal maintains excellent flexibility and resilience under both high and low temperature conditions. Its superior elasticity enables it to adapt to minor dimensional variations and surface irregularities between the liner and fluid end, forming a tight and consistent sealing interface. Even under long-term compression and high-frequency vibration, the seal retains its elastic recovery ability, avoiding permanent deformation and ensuring continuous, effective sealing throughout its service life.

This liner seal features excellent oil and heat resistance, making it highly adaptable to complex drilling fluid systems. It is fully compatible with both water-based and oil-based mud, resisting swelling, softening, or degradation caused by oil, lubricants, and chemical additives in drilling fluids. With a working temperature range from -30°C to 120°C, it maintains stable physical properties and sealing efficiency in high-temperature downhole environments and prolonged heavy-duty operation. The high-temperature resistance prevents thermal aging and cracking, while the oil resistance ensures reliable performance in oil-based mud applications where standard rubber seals often fail.

Julipetro Liner Seal adopts an advanced leak-proof multi-lip structure design, which significantly enhances sealing reliability. The multi-lip configuration creates multiple sealing barriers, effectively blocking high-pressure mud from penetrating along the installation gap. Each lip works synergistically to maintain contact pressure, adapt to surface roughness, and compensate for wear during operation. This design ensures zero leakage even under a rated working pressure of 5000 PSI, providing robust protection for the mud pump fluid end, preventing fluid loss, and maintaining a clean and safe working environment.

With full compliance with API 7K standards, Julipetro Liner Seal features standardized dimensions and precise manufacturing, ensuring high interchangeability with original equipment and most mainstream mud pump models. The standardized design eliminates matching errors and simplifies inventory management for drilling teams and equipment suppliers. Users can directly replace old or damaged seals without modification, significantly improving maintenance efficiency and reducing downtime.

To facilitate field maintenance, this liner seal uses a user-friendly split design, allowing quick installation and replacement without disassembling other complex components. The split structure greatly simplifies on-site operation, reduces the need for specialized tools, and shortens maintenance time, making it particularly suitable for emergency repairs and routine fluid end maintenance. Its easy installation and reliable performance make it a preferred choice for on-site maintenance teams.

Julipetro Liner Seal is widely used in sealing between mud pump liners and fluid ends, high-pressure mud transportation systems, fluid end routine maintenance, and oilfield spare parts inventory. It is suitable for various working conditions, including onshore drilling, offshore platforms, and high-wear sand-laden mud environments.

Backed by a 6-month warranty, Julipetro provides comprehensive support including professional seal selection guidance, fast delivery with stock or 5–7-day lead times, and detailed usage guidance. Each product undergoes strict quality testing to ensure compliance with API 7K standards and stable performance in field applications.

In summary, Julipetro Mud Pump Liner Seal integrates high elasticity, oil and heat resistance, multi-lip leak-proof design, API standardization, and easy installation. It provides safe, reliable, and long-lasting sealing for mud pump fluid ends, reduces maintenance costs, improves operational efficiency, and ensures stable performance in the most challenging drilling conditions. It is an ideal sealing solution for global oilfield drilling operations and mud pump maintenance.

1. High-elasticity Seal: Premium nitrile rubber, good elasticity, reliable sealing
2. Oil & Heat Resistant: Suitable for oil-based mud, working temp 120°C
3. Leak-proof Design: Multi-lip structure ensures zero leakage
4. Standard Specifications: API compliant, high interchangeability
5. Easy Installation: Split design for convenient field replacement



Material: Nitrile Rubber NBR
Hardness: Shore A 70-80
Working Temperature: -30°C ~ 120°C
Working Pressure: 5000 PSI
Standard: API 7K
Applicable Media: Water/oil-based mud

1. Mud Pump Liner Seal: Seal between liner and fluid end
2. Drilling Operations: High-pressure mud transportation
3. Fluid End Maintenance: Wear part replacement
4. Spare Parts Inventory: Oilfield material storage

Warranty: 6 months
Technical Support: Seal selection guidance
Lead Time: Stock or 5-7 days
After-sales Service: Usage guidance
