MP Valve Seat

Julipetro MP Valve Seat is a high‑performance core sealing component designed exclusively for mud pump fluid ends in oil and gas drilling, well servicing, cementing, and high‑pressure fluid transportation systems. As a critical part of the valve assembly, it forms a precision sealing pair with the valve body to control mud suction and discharge, maintain stable system pressure, and prevent fluid backflow. Manufactured in full compliance with API 7K standards and using premium alloy steel materials, this valve seat delivers exceptional hardness, precision, erosion resistance, and service life to withstand severe operating conditions including high pressure, abrasive mud, high‑frequency impact, and long‑term continuous operation.

Julipetro MP Valve Seat is constructed from high‑grade alloy steel 4140/4340, which provides excellent mechanical strength, toughness, and hardenability. Through professional quenching and tempering heat treatment, the valve seat achieves an extremely high surface hardness of HRC 58–62, ensuring outstanding resistance to abrasion, erosion, and deformation. This high hardness level enables the seat to maintain dimensional stability and sealing integrity when exposed to sand‑laden drilling fluid, high‑velocity fluid scouring, and repeated impact from the valve body. It effectively resists groove formation, pitting, and edge chipping, significantly reducing wear rates and extending the service life of the entire valve assembly.

A key feature of Julipetro MP Valve Seat is its ultra‑precision grinding process. The critical sealing surface is precision machined to a surface roughness of Ra 0.4, achieving a mirror‑like finish that ensures full contact and tight sealing with the valve body. This high‑precision surface eliminates micro‑gaps and leakage paths, enabling reliable high‑pressure sealing even under extreme working pressures common in modern drilling operations. Combined with strict dimension control of ±0.01 mm, the valve seat guarantees perfect concentricity, smooth assembly, and consistent performance across all units.

The valve seat features an optimized erosion‑resistant design with a carefully engineered sealing angle. This specialized angle reduces direct fluid impact on the sealing surface, minimizes turbulence, and lowers the rate of erosive wear caused by high‑speed mud flow. The streamlined structure enhances fluid passage efficiency, reduces energy loss, and improves the overall volumetric efficiency of the mud pump. By balancing sealing performance and flow characteristics, this design ensures stable operation, reduced heat generation, and extended service life in heavy‑duty drilling environments.

Fully compliant with API 7K international standards, Julipetro MP Valve Seat is produced under standardized manufacturing and strict quality control processes. Standardized dimensions, interface design, and material specifications ensure broad compatibility with a full range of triplex and duplex mud pumps widely used in global oilfield operations. This standardization simplifies inventory management, accelerates on‑site replacement, and supports reliable interchangeability with original equipment parts, making it an ideal choice for maintenance, repair, and new pump assembly.

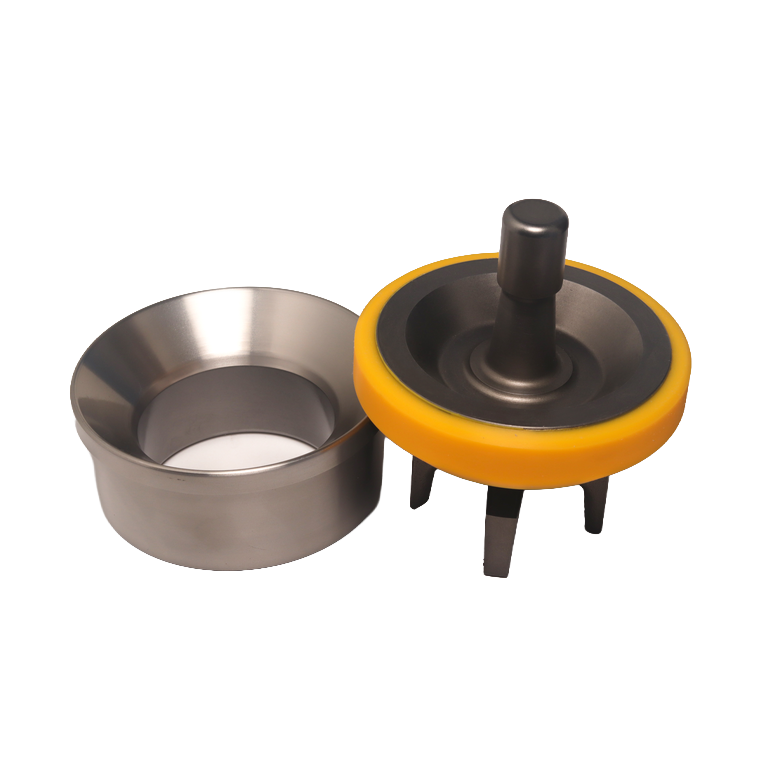

Julipetro MP Valve Seat is designed to work in perfect coordination with matching valve bodies, forming a high‑performance sealing system that delivers extended service life and reduced total cost of ownership. The matched sealing pair ensures consistent contact pressure, minimal wear, and long‑term sealing reliability, reducing downtime and maintenance frequency. It is widely used as a key high‑pressure sealing pair in mud pumps, a wearable component in fluid end routine maintenance, a factory installation part in new pump packages, and an essential spare part in drilling site inventory.

Backed by a 12‑month warranty, Julipetro provides comprehensive customer support including professional fit clearance guidance, 10–15‑day lead times for standard orders, and detailed installation guidance to ensure correct fit and optimal performance. Each valve seat undergoes rigorous quality inspections, including hardness testing, dimensional verification, sealing surface roughness measurement, and pressure testing, to guarantee compliance with API 7K standards and reliable field performance.

In summary, Julipetro Mud Pump MP Valve Seat integrates premium alloy steel material, ultra‑high hardness, precision grinding, erosion‑resistant design, and API 7K standardization to provide a reliable, long‑lasting sealing solution for mud pump fluid ends. With its exceptional wear resistance, high‑precision sealing, and extended service life, it effectively improves drilling efficiency, reduces maintenance costs, and ensures stable, safe operation in the harshest oilfield environments. It is the preferred choice for global drilling contractors, equipment manufacturers, and maintenance professionals seeking high‑quality, cost‑effective valve seat solutions.

1. Precision Grinding: Sealing surface roughness Ra0.4
2. High Hardness: Surface hardness HRC58-62
3. Erosion-resistant Design: Optimized sealing angle
4. Standardized Production: API 7K compliant
5. Extended Life: Used with valve body for long service life



Material: Alloy Steel 4140/4340
Surface Hardness: HRC 58-62
Sealing Surface Roughness: Ra 0.4
Standard: API 7K
Heat Treatment: Quenching + Tempering
Dimension Tolerance: ±0.01mm

1. Mud Pump Valve Pair: High-pressure sealing pair
2. Fluid End Maintenance: Wear part replacement
3. New Pump Package: Factory installation
4. Spare Parts Inventory: Drilling material storage

Warranty: 12 months
Technical Support: Fit clearance guidance
Lead Time: 10-15 days
After-sales Service: Installation guidance
