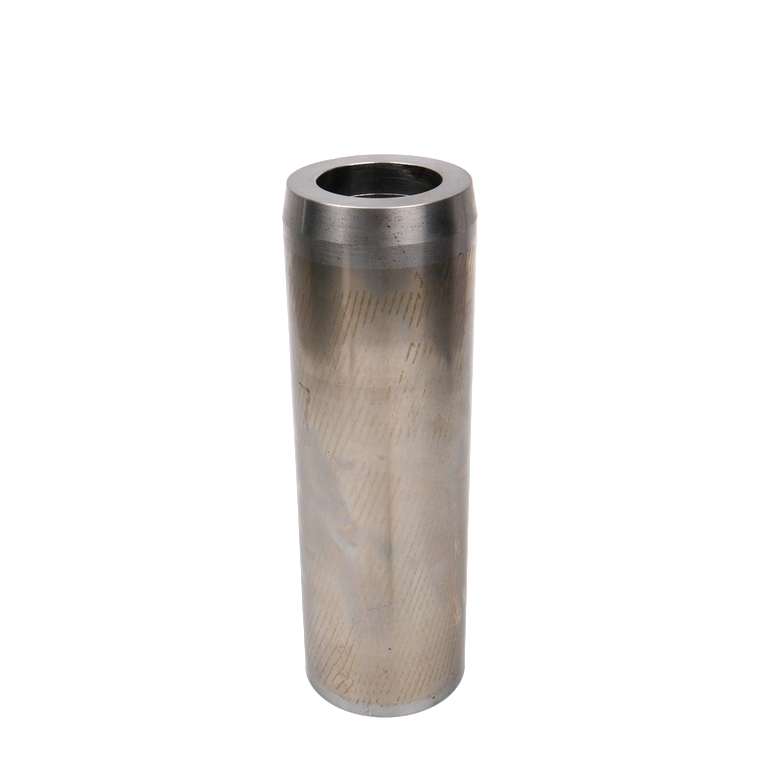

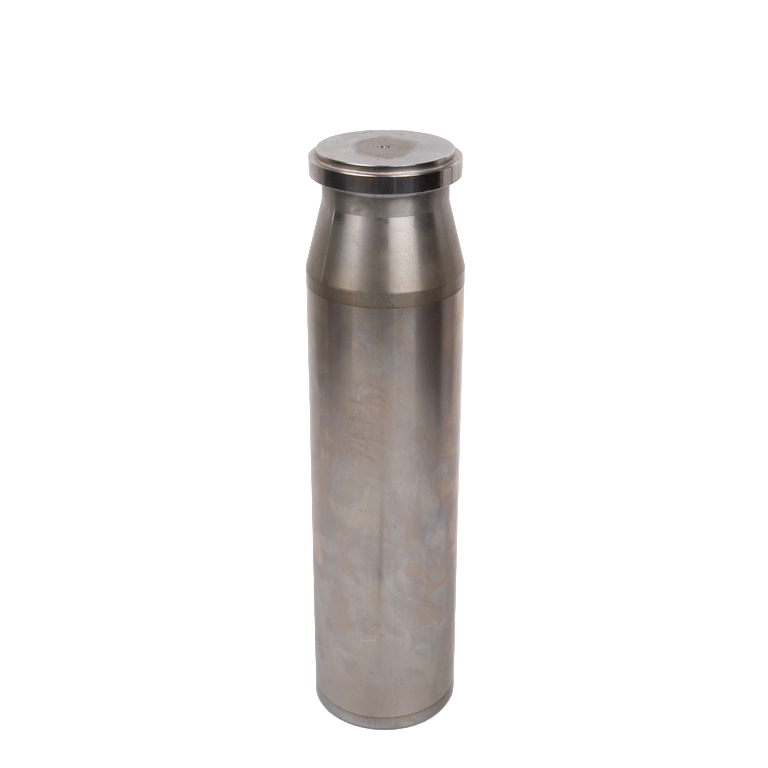

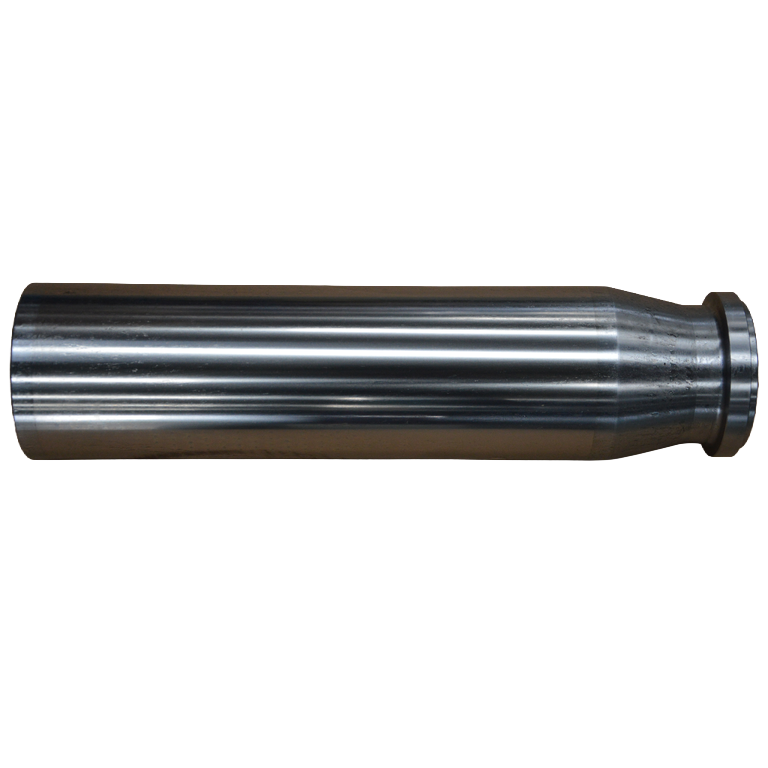

Plunger

Julipetro Plunger is a high-performance reciprocating component specially developed for high-pressure fracturing pumps, serving as a core part for pressure output and fluid delivery in oilfield fracturing, acidizing, cementing and high-pressure fluid transportation systems. By combining high-strength alloy steel substrate, high‑density ceramic coating and ultra‑precision polishing process, this plunger provides excellent wear resistance, corrosion resistance, smoothness and fatigue life, meeting the long‑term reliable operation requirements under harsh conditions such as high sand content, strong corrosion and high-frequency reciprocating load. In full compliance with API 674 standards, it is widely used in conventional fracturing, acid fracturing, high‑wear operation and routine maintenance scenarios, providing stable and efficient power support for oil and gas production enhancement operations.

The core advantage of Julipetro Plunger lies in its professional ceramic coating structure. The surface is coated with high-purity Cr₂O₃ ceramic material by thermal spraying technology, forming a dense and uniform protective layer with a thickness of 0.2–0.3mm. The ceramic coating has extremely high hardness, reaching above HRC70, which can effectively resist scratches, erosion and cutting damage caused by sand‑laden fracturing fluid and solid particles. Compared with ordinary metal plungers, it greatly reduces the wear rate and ensures stable performance in long‑term high‑load operation.

This plunger adopts an ultra‑smooth surface polishing process, with the surface roughness controlled at Ra0.1, presenting a mirror effect. The extremely low friction coefficient reduces the resistance during reciprocating motion, lowers heat generation, and effectively reduces the wear rate of matching sealing parts. The smooth surface is not easy to accumulate impurities and scaling, which helps maintain stable sealing performance and prolongs the service life of sealing components such as packing, reducing the frequency of maintenance and replacement.

The substrate of Julipetro Plunger is made of high‑quality alloy steel 4140, which provides excellent mechanical properties and fatigue resistance. After strict heat treatment and precision machining, the substrate has high structural strength and toughness, can withstand long‑term alternating stress and impact load, and is not easy to deform or break. The perfect combination of high‑strength substrate and high‑hardness ceramic coating gives the plunger both strong internal bearing capacity and excellent surface protection performance, adapting to the harsh working conditions of high‑pressure fracturing pumps.

With excellent corrosion resistance, Julipetro Plunger can operate stably in highly corrosive environments. The ceramic coating has good inertness, can resist acid, alkali and other chemical media corrosion, and is suitable for acid fracturing operations and various corrosive fluid environments. It effectively avoids material degradation, peeling and failure caused by corrosion, ensuring the stability and safety of equipment in complex working conditions.
Thanks to the optimization of material, structure and process, Julipetro Plunger has a longer service life, which is more than twice that of standard plungers. The extended replacement cycle reduces downtime and maintenance costs, improves the continuity and efficiency of fracturing operations, and brings significant economic benefits to operators.

In terms of technical parameters, Julipetro Plunger uses alloy steel 4140 as the substrate, Cr₂O₃ as the coating material, with surface hardness HRC70+, surface roughness Ra0.1, coating thickness 0.2–0.3mm, and meets API 674 standards. It is mainly used as the core component of fracturing pumps for high-pressure reciprocating motion, suitable for high‑wear sand‑laden fracturing fluid conditions, corrosive acid fracturing operations, and as a wearing part for regular maintenance.

Julipetro provides a 12‑month warranty for this plunger, with a production cycle of 15–20 days. It also provides professional coating repair services, usage guidance and other after‑sales support. Each product undergoes strict quality inspection such as dimensional inspection, hardness test, coating adhesion test and roughness detection before leaving the factory to ensure that it meets API 674 standards and on‑site use requirements.

In summary, Julipetro Fracturing Pump Plunger has five core advantages: ceramic coating with high hardness, ultra‑smooth polished surface, high‑strength alloy substrate, excellent corrosion resistance and more than twice the extended service life. It is a high‑reliability and long‑life core component for fracturing pumps, which can effectively improve the operation efficiency of oilfield stimulation equipment, reduce maintenance costs, and provide a solid guarantee for safe and efficient operation under harsh working conditions.

1. Ceramic Coating: Surface sprayed ceramic, hardness up to HRC70+
2. Ultra-smooth Surface: Polished, roughness Ra0.1, reduces seal wear
3. High-strength Substrate: Alloy steel base, excellent fatigue resistance
4. Corrosion Resistant: Ceramic coating resists acid/alkali corrosion
5. Extended Life: 2x+ service life vs. standard plungers



Substrate Material: Alloy Steel 4140
Coating Material: Ceramic Cr2O3
Surface Hardness: HRC 70+
Surface Roughness: Ra 0.1
Coating Thickness: 0.2-0.3mm
Standard: API 674

1. Fracturing Pump Core Component: High-pressure reciprocating motion
2. High-wear Conditions: Sand-laden fracturing fluid
3. Corrosive Environment: Acid fracturing operations
4. Wear Part Replacement: Regular maintenance

Warranty: 12 months
Technical Support: Coating repair service
Lead Time: 15-20 days
After-sales Service: Usage guidance
